Buyer: Parks & Recreation Directors, Parks Superintendents, Municipal Operations Managers, Public Facilities Managers
Risk: Inspection failure, rework, and opening delays caused by incorrect use zone dimensions
Applies to: ASTM F1487, CPSC Public Playground Safety Handbook, ASTM F1292, ADA Standards (where applicable)
When Footprints Replace Measured Clearance
For Parks & Recreation Directors and Municipal Operations Managers, a playground plan can look complete while still missing the one thing an inspector can verify quickly: the clearance envelope around each piece of playground equipment. Footprints show where play structures are located. They do not automatically show the use zone that must remain free around each structure, slide exit, and swing set bay.
This is where playground use zone requirements become a municipal risk. Zone requirements vary depending on the components on the site, the nature of the play activity, and where a child could fall or exit and land. When a use zone is not defined early, other structures, borders, and circulation paths often get placed inside the space that must remain clear. The result is corrective work during inspection, when decisions are least flexible and most visible.
Why Inspectors Measure Use Zones First
Use zones are not a preference item. They are a measurable condition tied to safety standards, protective surfacing coverage, and acceptance review. Inspectors care because a use zone can be confirmed with distance measurements in the field, and the findings are easy to document.
General guidance in the CPSC handbook describes a minimum use zone that extends from the perimeter of equipment, limits when overlap is permitted, and states that use zones should be free of obstacles. It also treats slide exit zones and swing set motion envelopes as higher-risk conditions with stricter separation rules than most stationary play structures.
In public projects, this is crucial because zone corrections often affect more than equipment placement. They affect the surface limits, the edge containment line, accessible access routes, and whether the play area can open for public use without restrictions.
The Variables That Change Use Zone Calculations
Meeting playground use zone requirements consistently comes from applying the right geometry to each component type, then documenting it in a way that holds up at inspection.
Use Zone Geometry Is Component-Specific

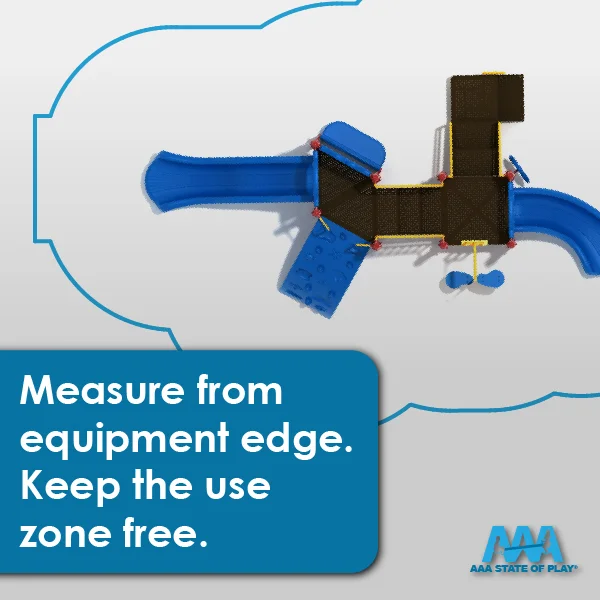

A use zone is the ground-level area beneath and immediately adjacent to play structures where circulation is expected and where a user is predicted to fall and land or exit the equipment. In practice, this means the “zone” is not drawn from a marketing footprint. It is drawn from the real outer edge of the equipment and the way the component is used.
CPSC guidance provides a baseline minimum distance from the perimeter for equipment not specified elsewhere, and it also sets when overlap between two stationary pieces is permitted (and when a larger minimum separation is expected). Those overlap limits are a common inspection trigger because they depend on fall height and the height of adjacent designated play surfaces—not on how crowded the play area looks on paper.
A defensible layout treats each play component as its own measured element and creates a defined use zone boundary that can be checked on the ground.
Slide Exit Zones Control Conflicts
Slides create the most repeatable conflicts because the slide exit needs clear forward space, and that exit zone is often where designers try to “fit” other elements. CPSC guidance treats the slide exit use zone as a separate condition: the use zone to the sides and front of a slide is based on minimum clearance from the equipment perimeter, but the use zone in front of the slide exit increases based on slide height and is not supposed to overlap the use zone of other equipment (with limited allowance when multiple slide paths are parallel).
In field review, a slide exit that points into another use zone is usually treated as a layout failure, not a minor adjustment. It is also where surfacing limits are frequently short, because the surface edge gets drawn to the footprint instead of the exit zone length.
Swing Set Use Zones Cannot Share Space
A swing set creates a moving impact envelope, not a simple rectangle. That is why inspectors focus on whether the front and rear swing use zone is treated as non-negotiable space. CPSC guidance describes the forward and rear use zone for single-axis swings as a multiple of the vertical distance tied to the pivot point (and uses a similar approach for full bucket swings based on the sitting surface to pivot). It also states that the front and rear swing use zones should never overlap with any other use zone.
This is a recurring municipal failure because swings “fit” visually next to other structures, but their use zone does not. The required clear space is the extra room that protects users during motion and exit, and it is the first area to get compromised by paths, benches, or adjacent play structures.
Plans and Field Verification Must Match
Projects pass inspection when the use zone shown on the plan matches the use zone that exists after installation and surfacing. This is a documentation issue as much as a spacing issue. On composite play structures, guidance describes the use zone as extending from the external perimeter of the structure, and it flags that attached slides can require additional extension in front when platforms are higher.
In practice, the “perimeter” often includes the outer line created by posts, guardrail/top rail boundaries, and protruding elements that define the edge of circulation. If that edge is drawn too tight, the use zone is under-measured. If the surface placement follows that under-measured line, the surfacing ends early and creates an unprotected strip at the edge where children could fall and land.
Defensible packages also show how access routes and maintenance paths are kept clear of swing motion and slide exit zones, because those conflicts are easy for an inspector to note and hard to justify after installation.
Where Use Zone Conflicts Typically Show Up
The use zone drawings are missing or incomplete, so playground equipment is located based on the footprint only, and the first measured conflict appears at inspection.
Slide exit zones extend into the use zone of other structures, especially at the end of a slide that points toward the center of the play area.
Swing set front/rear use zones overlap adjacent play structures or circulation paths, creating a predictable impact risk and a non-compliant overlap condition.
Composite structure use zones are measured from an inner deck line instead of the external edge, so the required extension is not achieved in the field.
Surfacing is installed to a tighter border than the defined use zone, leaving gaps at the surface edge where falls are still foreseeable.
How to Build Use Zones Into Plans and Acceptance Records
Defensible outcomes occur when playground use zone requirements are treated as a plan-set requirement, not an inspection-day discovery. Plans that hold up in review show each use zone as a defined, dimensioned shape, including slide exit clearances and swing motion envelopes, and they show how those zones relate to the surface boundary and the play area edge.
Acceptance is more predictable when the planned use zone distances are verified against installed conditions before surfacing is finalized, and when records show the zones remain free of obstacles after site amenities and circulation routes are installed. This approach reduces downstream rework because it aligns layout, surfacing, and inspection documentation into one consistent set of conditions.
What This Means for Parks and Facilities Decision Owners
For Parks & Recreation Directors and Municipal Operations Managers, playground use zone requirements are easiest to defend when they are treated as measurable acceptance criteria:
Use zone drawings should be present, dimensioned, and tied to each component—not implied by footprint.
Slide exit and swing set zones should be treated as separation drivers, not leftover space.
Surfacing limits should extend to the full use zone, including at the edge of the play area and at high-energy exits.
The record should show the zones were verified in the field, not assumed from the plan.
Next Step
If you need an inspection-aligned reference for how use zone clearances are evaluated against common safety standards during acceptance, review the inspection process.
