Four styles cover almost every commercial project: sail, umbrella, hip, and cantilever. Match the style to the shape of the area you're covering and to where you can physically put posts, because post placement is the constraint that eliminates options fastest.
Hip shades suit large rectangular areas, umbrellas suit small round or square ones, cantilevers work where posts can only go on one side, and sails handle irregular shapes and custom designs at the highest cost. Here's how each one works and what to confirm before ordering.
The four main styles
Sail shades use triangular fabric panels in varied configurations. Common designs include quad sail, sail square, sand dollar, and hyperbolic sail, and they can be custom-designed for an unusual space. They're the most expensive option and the right choice when appearance matters or the area is an awkward shape. Typical applications are park benches, bus stops, playgrounds, and public gardens.

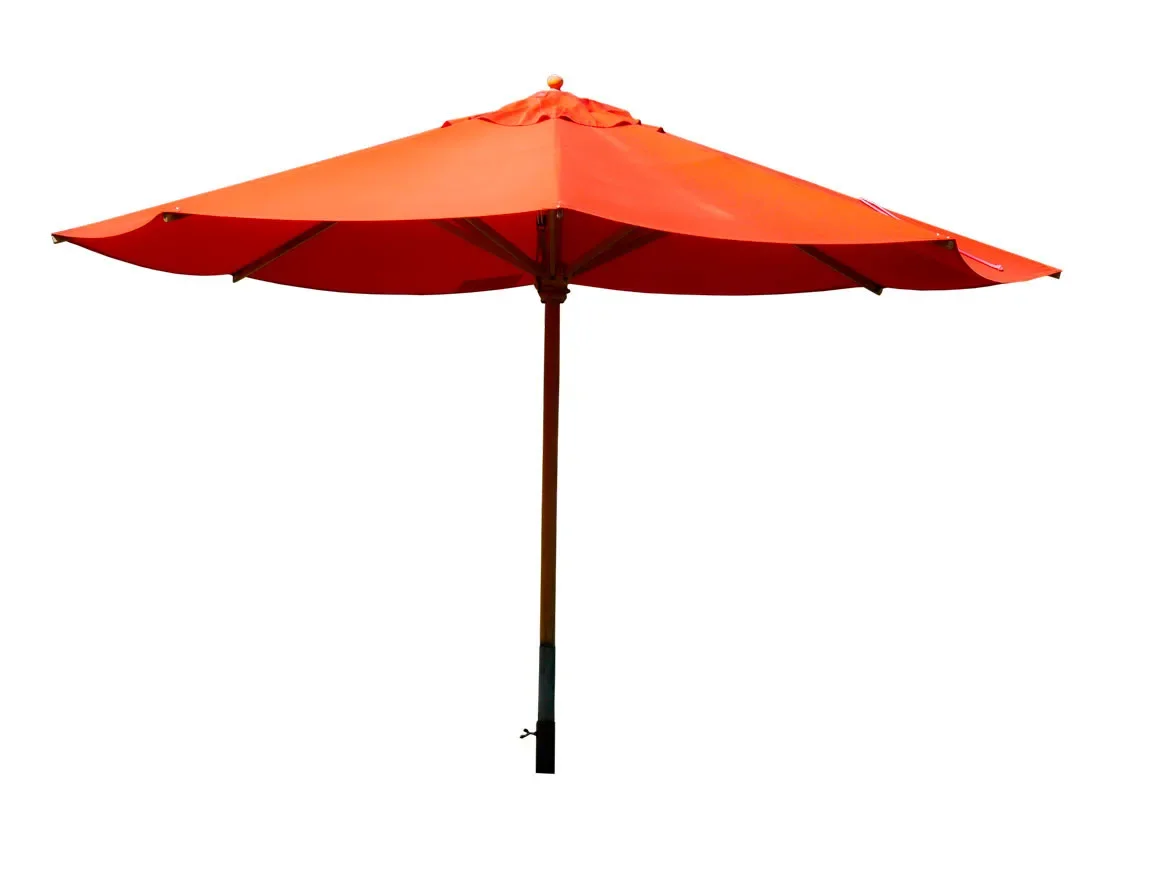

Umbrella shades center on a single post. Available in sizes up to 24 feet, with four-sided tilted and six-sided polygon versions, plus two- and three-column variants and cantilever umbrellas for larger areas. They suit smaller spaces and work well in groups, making them flexible for picnic areas, pool decks, outdoor dining, splash pads, and service kiosks. Outdoor umbrellas are the simplest version of this style.
Hip shades are square or rectangular on four posts. They cover the most area per dollar and come in the widest range of sizes, which is why they're the standard choice for playgrounds, sports courts, and outdoor venues.
Cantilever shades put all the support on one side. The fewest parts and footings of any style, engineered to deliver maximum coverage with minimum obstruction underneath, in a range of overhangs and heights. They fit parking areas, outdoor seating, concessions, drive-throughs, and sidewalks.
Match the style to the shape of the area
Start with the footprint you need to cover rather than with a style you like.
A long rectangular area wants a hip shade or a row of cantilevers. A small gathering point wants an umbrella, and several umbrellas cover an irregular seating area better than one large structure does.
An area you can't put posts inside wants a cantilever. That's the whole reason the style exists: parking rows, walkways, and seating areas where a post in the middle would obstruct everything.
An irregular or signature space wants a sail. Sails are the most expensive per square foot of coverage, so they earn their cost where the shape is unusual or the appearance is part of the project.
Post placement and use zones
This is the constraint most shade projects discover late, and it's worth checking first on a playground.
Shade structure posts and footings cannot sit inside a playground use zone. Use zones extend at least 6 feet in every direction from equipment, and considerably further in front of and behind swings, so a hip shade sized to cover a play structure often needs a footprint noticeably larger than the equipment itself.
Clearance height matters too. The shade has to sit high enough above the highest point children can reach on the equipment, and that includes a child standing on the top deck rather than just the deck height.
Measure both before you select a style. A cantilever or a larger hip shade sometimes solves a post placement problem that would otherwise force a smaller structure and less coverage.
Wind, snow, and permitting
Commercial shade structures are engineered assemblies, not fabric on poles, and three things follow from that.
Wind rating is the primary engineering specification. Ask what wind speed a structure is rated for and whether that rating assumes the fabric is installed or removed, since fabric under load transfers force through the frame into the footings.
Snow load applies in northern climates and is typically handled by removing the fabric for the season rather than by engineering for the weight. Tensioning hardware that allows ground-level fabric removal makes that practical.
Footings and permits come next. Posts are set in concrete below the local frost line, and many municipalities require a permit and engineered drawings for a structure of this size, which is worth confirming before you finalize a design.
What to confirm before you order
Six items settle most shade purchases.
Coverage area and post locations. Drawn to scale against use zones, not estimated.
Clearance height above the equipment. Measured from the highest reachable point.
Wind rating and whether the warranty requires fabric removal. Get both in writing.
Fabric ultraviolet blocking and warranty term. Fabric is the consumable component and carries a shorter warranty than the frame.
Whether fabric can be removed from the ground. This determines whether seasonal removal is a staff task or a contracted one.
Replacement fabric availability and color options. Colors are usually extensive; long-term panel availability is the question that matters in year eight.
Choose a shade structure with AAA State of Play
The right style follows from the shape of your area and where posts can go, with wind rating and fabric removal deciding the rest. AAA State of Play supplies hip, sail, cantilever, and umbrella shade structures for playgrounds, parks, schools, and community facilities. Contact us today for a free quote!
