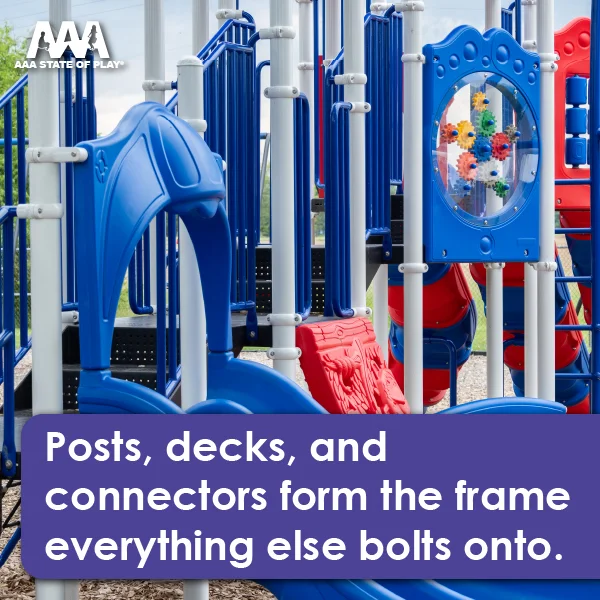

A modular play system is built from six part groups: uprights and footings, decks, access components, enclosure, exit components, and connectors. Everything else on a playground, including swings and freestanding pieces, sits around that structure rather than in it.
Knowing the vocabulary matters when you're reading a quote, because suppliers price these groups separately, and a structure is configured from them rather than bought as a single unit. Here's what each group does.
Uprights, footings, and hardware
Uprights are the vertical posts that carry the whole structure, and they're the component that determines its service life. Commercial uprights come in several diameters, and the gauge scales with the size of the system they support.
Footings anchor those uprights. Posts are set in concrete below the local frost line, typically 24 to 36 inches deep depending on region, and that depth is what prevents frost heave from pushing a structure out of plumb.
Hardware is the group nobody thinks about and the one that fails first. Clamps, brackets, and fasteners hold every component to the uprights, and they need torquing to the manufacturer's specification rather than by feel. Ask whether hardware is stainless or coated and whether bolt ends are capped, since exposed threads are both a snag hazard and a corrosion point.
Decks, access, and enclosure
Decks are the platforms children stand on, and their height drives almost every other requirement on the structure.
Access components get children onto those decks, and each demands something different. Stairs need the least coordination, ladders require upper body strength and grip, ramps allow a child to reach deck level without leaving a mobility device, and climbers like rock walls and rope nets demand the most. A well-configured system includes more than one type so children of different abilities can all get up.
Enclosure keeps children on the deck once they're there. Guardrails are open rails; protective barriers are full enclosures. ASTM International standard F1487 specifies which is required at which deck height, and the thresholds are lower for the ages 2 to 5 group than for 5 to 12.
Panels do double duty. They serve as an enclosure while providing activities, so a barrier can be a maze, a storefront, or an alphabet panel rather than a blank wall.
Slides, tubes, and bridges
Exit components are how children get down, and slides are the main one. They come straight, wave, and spiral, and they attach to a deck at a specified height, which means the slide and the deck have to be specified together.
Fall height is measured from the deck platform rather than from the top of the slide, and it governs the surfacing requirement beneath the whole use zone.
Connectors link decks to each other. Bridges, crawl tubes, and transfer decks turn several platforms into one continuous route, which is what makes a play system feel larger than the sum of its parts.
These are also where debris and nesting accumulate. Enclosed tubes need checking on the inspection schedule, since you can't see inside them from the ground.
What sits around the structure
Three things are part of the playground but not part of the play system.
Swings almost always occupy their own bay. Their use zone extends twice the pivot height in front and behind, so they can't share clearance with a structure and are quoted separately.
Freestanding components fill the space around the system: spinners, spring riders, balance elements, and sports equipment like tether ball and basketball hoops. Adding three or four of these usually delivers more usable play than making the main structure one deck larger.
Surfacing and borders are the system the structure sits on. Surfacing has to be rated to the fall height, with the Consumer Product Safety Commission (CPSC) recommending 9 inches of compressed loose fill for fall heights up to 10 feet, and borders keep loose material inside the use zone.
What the parts are made of
Three materials cover nearly every component, and each handles a different job.
Powder-coated galvanized steel is used for uprights, frames, ladders, and hardware. The galvanized layer resists corrosion, and the powder coat protects it, so keeping that coating intact is the main maintenance task on a metal component.
Rotationally molded, ultraviolet-stabilized plastic handles decks, panels, slides, and tubes. It doesn't rot or splinter and stays cooler to the touch than uncoated metal in direct sun.
Recycled plastic is increasingly common and performs comparably to virgin material. It keeps material out of landfill and takes less energy to produce, and it's manufactured in the same colors, so a visitor won't be able to tell.
Wood appears mainly where a natural look is the design intent, and it needs resealing every two to three years for its whole service life.
Find play system components at AAA State of Play
A play system is configured from parts rather than bought whole, which is what makes it possible to build around your site and replace components individually later. AAA State of Play supplies play structures, climbers, slides, freestanding components, and surfacing to schools, parks, churches, and daycares. Contact us today for a free quote!
