The 2010 Americans with Disabilities Act (ADA) Standards for Accessible Design require three things of a public playground: an accessible route connecting the play area, a set number of ground-level play components, and accessible access to at least half the elevated play components. Get those three right, and the rest of the design follows.
Compliance is a numbers exercise, not a judgment call. This guide covers the route widths, ramp slopes, surfacing standards, and component counts the standards actually specify, plus the inclusive features that go beyond the minimum.

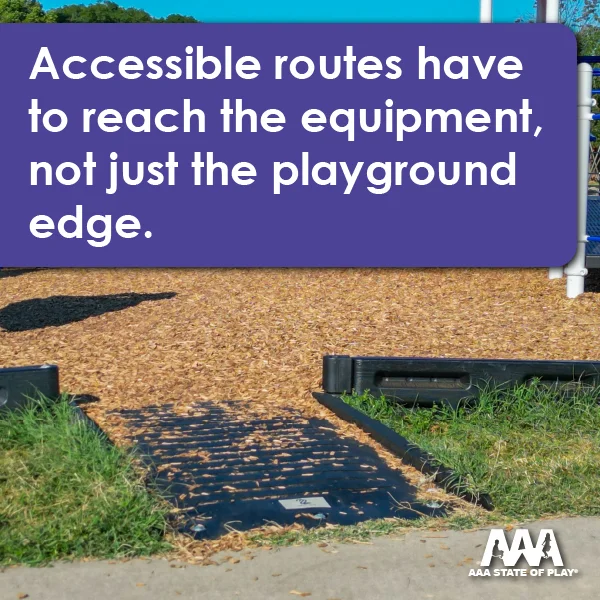

Accessible routes: widths and slopes
The route is where compliance starts, because a component nobody can reach isn't accessible regardless of its design. Routes have to connect the play area to the site's other accessible elements and continue through the play area itself.
Two width requirements apply. Ground-level accessible routes within a play area need a minimum clear width of 60 inches, with narrower reductions permitted only over short distances, while elevated accessible routes such as ramps on the structure need a minimum of 36 inches.
Ramp slope is capped at 1:12, and ramps within play areas are also limited in rise per run. Handrails are required on ramps serving elevated play components, sized for children rather than adults.
Design the route as a loop rather than a spur. A route that dead-ends at one component technically complies while functionally excluding a child from the rest of the playground.
Surfacing has to meet two separate standards
This is where the most projects fall short. Accessible playground surfacing has to satisfy two ASTM International standards at once, and passing one doesn't imply the other.
ASTM F1951 is the accessibility standard. It tests how much work it takes to propel a wheelchair across a surface, both on level ground and on a slope, and it's what determines whether a surface counts as firm and stable for ADA purposes.
ASTM F1292 is the impact attenuation standard. It measures whether the surface protects against falls from the equipment's fall height, and it's a separate test with separate results.
Poured-in-place rubber and rubber tiles pass both reliably. Engineered wood fiber can meet F1951 when properly installed and maintained at depth, but it needs consistent upkeep to stay compliant, and loose fills like sand and pea gravel don't qualify as accessible surfaces at all.
Ground-level play components
Ground-level components are those a child can use without climbing, and the Standards set both a count and a variety requirement. The number scales with how many elevated components the structure has.
The variety rule matters as much as the count. Where several different types of ground-level components exist on the site, the accessible ones have to represent different types rather than several of the same thing.
Practically, this means panels, sand and water tables, accessible swings and seats, spinners, and music elements all count toward the requirement in different categories. A row of identical panels doesn't satisfy a variety requirement even if the count works out.
Place them centrally rather than at the edge. Compliance doesn't distinguish between a component in the middle of the structure and one bolted to the far corner, but children do.
Elevated components and how they're accessed
At least 50 percent of elevated play components must be on an accessible route. That's the headline figure, and it's the one most people know.
The second rule catches projects out. When a structure has 20 or more elevated play components, at least 25 percent of them have to be reachable by ramp specifically rather than by a transfer system, which changes the design substantially on larger structures.
Transfer systems cover the rest. A transfer platform with steps and support bars lets a child leave a mobility device and move onto the structure under their own strength, and platform height and depth are both specified.
Include both access types where you can. Ramps serve children who stay in a mobility device, and transfer systems serve children who can move out of one, and they're not interchangeable from the child's point of view.
Inclusive features that go beyond compliance
The Standards set a floor. Several features that make a playground genuinely usable aren't required at all, and they're the ones that distinguish an inclusive playground from a compliant one.
Sensory components engage touch, sound, and sight. Textured panels, chimes, and outdoor music elements serve children with sensory processing differences and are widely used as well.
Visual contrast aids navigation. Contrasting colors at transitions, edges, and entry points help children with limited vision move through a space confidently.
Quiet space supports self-regulation. A partially enclosed area set slightly apart gives an overstimulated child somewhere to settle rather than having to leave.
Seating inside the play area includes caregivers. A parent or grandparent with limited mobility can supervise from within the space instead of the perimeter.
Plan these from the start. Retrofitting accessible and inclusive features after surfacing is down and footings are set costs far more than specifying them in the original design.
