Engineered wood fiber needs to be installed at 12 inches deep under the playground equipment and maintained at no less than 9 inches after compression, since loose fill compresses by at least 25% over time. Those are two different numbers for the same playground surface, and confusing them is the most common reason a play area fails a depth check even though it was installed correctly.
If you manage a park, school, or childcare site and you're ordering wood fiber or reviewing an inspection report, this guide covers required depth by equipment height, how to calculate square footage into cubic yards, and the regular maintenance that holds the depth in place. You'll get the inch figures and the order math so you can size a delivery and read a depth gauge without guessing.
What's the difference between installed depth and compressed depth?
Installed depth is what the delivery gives you on day one. Compressed depth is what the surface actually measures a few weeks later, after foot traffic and weather conditions have settled the material, and it's the only number an inspector cares about. Loose-fill materials compress by at least 25%, so a site placed at exactly 9 in. is already out of compliance by the end of its first busy month.
That gap explains the depth ranges you'll see quoted:
9 to 12 inches is the required depth range for engineered wood fiber under most commercial playground equipment.
9 inches is the floor after compression, meaning the minimum a maintained surface should ever measure.
12 to 17 inches applies to taller equipment, where the fall height demands more material than a standard structure does.

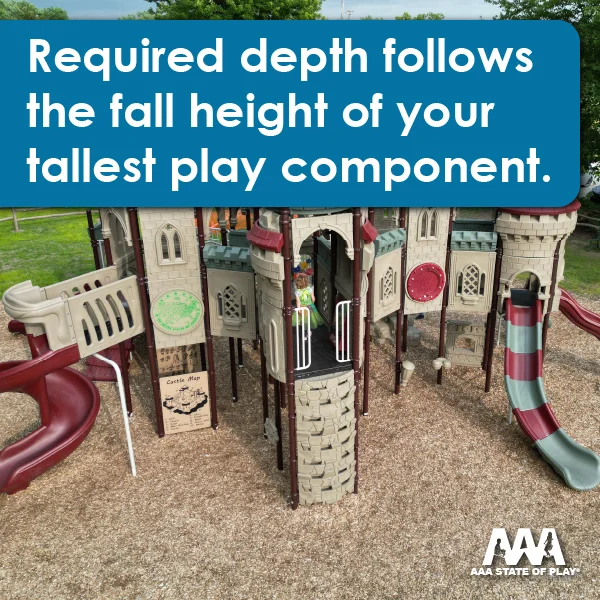

How does equipment height change the required depth?
Depth follows fall height, which is the distance from the highest play surface down to the protective surfacing below. ASTM F1292 tests a material to a critical height, the maximum fall height at which it keeps impact forces below the injury threshold, and a material's critical height climbs as its depth increases.
Run that logic in reverse, and it becomes a planning tool. The depth you can realistically maintain sets a ceiling on how tall a structure your site can support, so surfacing belongs in the conversation before you select play structures rather than after the order is placed. The required depth also applies across the full 6 ft use zone surrounding stationary equipment, not just the patch directly underneath it.
What separates engineered wood fiber from landscaping mulch?
Engineered wood fiber is made from virgin wood, shredded or chipped, and then specially processed to a consistent fiber length that knits together into a firm mat under traffic. It's certified to ASTM standards for impact attenuation and carries International Play Equipment Manufacturers Association (IPEMA) certification, which verifies the product was tested as sold and is safe around children and animals.
Standard landscaping mulch is unsafe for playgrounds, and the reason isn't cosmetic. Bagged landscape material has never been impact tested, carries no critical height rating, and often contains dyes or chemicals that have no business in a play area. Ordinary wood chips behave differently too, compacting into a hard layer instead of holding the cushioned texture that reduces injuries from falls and tumbles.
How do you calculate how much wood fiber to order?
Order by volume after measuring the area. Multiply the length by the width of the surfaced area in feet to get square footage, including the full use zone, then convert to cubic yards. One cubic yard holds 27 cu ft of material, so it covers 27 sq ft at a 12-inch depth or about 36 sq ft at 9 inches
Three steps get you to a complete order:
Measure the whole surfaced area rather than the equipment footprint, since the use zone often doubles the square footage.
Divide square footage by 27 for a 12 inches installed depth, which is the figure most surfacing calculators use as their default.
Add at least 25% for compression so the surface still measures 9 inches or more once it settles.
What maintenance keeps the depth compliant?
Engineered wood fiber decomposes as well as compresses, so depth loss is continuous rather than a one-time settling event. Playground mulch has to be re-topped regularly to stay compliant, and every one to two years is the realistic cycle for a site in regular use.
Between those refreshes, the work is mostly redistribution:
Rake the surface regularly to keep it even, clean, and free of the debris that collects in loose fill.
Check the high-wear zones first. Under swings and at slide exits, material displaces faster than anywhere else and hits minimum depth long before the rest of the play area does.
Contain the material with a border. A border and surfacing system keeps wood fiber inside the use zone instead of migrating into surrounding grass, which is where a surprising amount of a delivery disappears.
Does depth affect accessibility?
It does, and this is where installation quality matters as much as quantity. Properly installed and compacted engineered wood fiber creates a stable surface that supports wheelchairs and walkers, which is why it's the loose fill material most often specified where Americans with Disabilities Act (ADA) compliance is required.
That performance is conditional. A run of fiber that's loose, uneven, or thinned at a transition stops supporting a caster wheel, and those failure points sit exactly where an accessible route meets the equipment. Any site aiming at accessible and inclusive play needs the maintenance schedule to match the ambition, or a unitary surface is the better specification.
Should you use rubber mulch instead?
Rubber mulch provides superior durability and needs less maintenance than wood fiber, since recycled rubber doesn't decompose, rot, or attract insects. Made from processed passenger car tires, quality rubber mulch typically exceeds safety thresholds for fall protection at a shallower depth than wood fiber requires, and it holds that performance for years.
Engineered wood fiber still earns its place on plenty of projects. It costs less installed, it gives you a natural look and texture that suits wooded parks and nature-themed sites, and it's the more common choice where an accessible route has to cross loose fill. The tradeoff is straightforward: lower upfront cost in exchange for raking, retopping, and a shorter service life.
Sizing Engineered Wood Fiber Depth With AAA State of Play
Depth, fall height, and order quantity all trace back to the same structure and site plan, which makes them easier to work out together than separately. AAA State of Play helps parks departments, school districts, and childcare centers run those numbers regularly, and we're glad to walk through your square footage and equipment heights whenever it's useful.
