Updated 11/2026
Playground accessibility is governed by the 2010 Americans with Disabilities Act (ADA) Standards for Accessible Design, which apply to any play area newly constructed or altered after March 15, 2012. The core ADA guidelines require an accessible route connecting play components, at least one of each type of ground-level play component on that route, and surfacing that passes both wheelchair accessibility and impact attenuation testing, and these play area guidelines sit alongside the usual safety standards rather than replacing them.
If you're planning a new playground or assessing an existing playground, this guide covers the measurements, the component counts, and the design decisions that take a site past minimum compliance. You'll get the figures so you can check a plan against ADA requirements yourself.

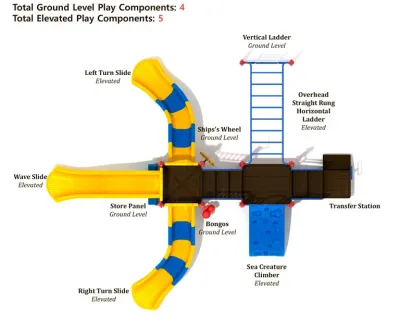

What counts as a ground level or elevated play component?
The distinction drives every requirement that follows:
Ground-level play components are approached and exited at ground level, including panels, ground spaces for spinning elements, a spring rider, and sand or water tables at reachable height.
Elevated play components sit on a platform or deck area reached by climbing, ramp, or transfer, which, on composite play structures, means most of the slides, bridges, and upper panels.
Composite structures combine both, and the elevated count determines how many ground-level components you owe. That relationship is the part most often missed when a design is being value-engineered: cutting ground-level components while keeping the deck system doesn't reduce the obligation. It creates a compliance gap.
How many play components must be accessible?
Three rules govern the counts:
At least one of each type of ground-level play component must be on an accessible route. Types means categories of play, so a site with swings, climbers, and panels owes an accessible example of each.

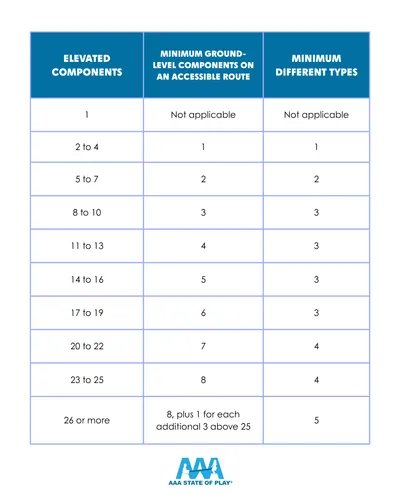

Ground-level components must be provided in quantities based on the elevated components on the structure, scaling up as the deck system grows.
At least 50% of elevated play components must be accessible, with ramps connecting at least 25% of them on larger structures and the remainder reachable by transfer system.
Those last two figures describe the same rule rather than competing ones. Half the elevated components must be reachable, and elevated accessible routes in ramp form have to do at least a quarter of that work, because a transfer system doesn't serve wheelchair users who can't leave their device.
What are the accessible route requirements?
The minimum width for an accessible route is 60 inches, which allows two wheelchairs to pass. Ground level routes can narrow to 36 inches for a maximum length of 60 inches, which accommodates a pinch point without compromising the route overall.
Slope limits are equally specific:
Ground-level routes have a maximum running slope of 1:16 and a maximum cross slope of 1:48.
Ramps have a maximum slope of 1:12, steeper than a route because they're shorter and have handrails.
The route has to start outside the play area. Accessible parking spaces must connect directly to pathways leading to the playground, so a compliant structure reached across a gravel strip from the parking lot isn't actually accessible. Check entry points as carefully as the equipment.
What surfacing meets the standard?
Playground surfaces have to pass two different tests. ASTM F1951 governs wheelchair maneuverability, while impact attenuation is tested separately, and a surface has to satisfy both to be usable beneath accessible play structures.
Surface systems divide along predictable lines:
Poured-in-place rubber provides a stable surface for wheelchair navigation and passes both tests reliably.
Engineered wood fiber absorbs impact and supports mobility devices when properly compacted and maintained, which makes it the only loose material commonly specified for accessible routes.
Loose sand and wood chips typically fail wheelchair accessibility tests and create barriers for children using wheelchairs.
Maintenance decides whether engineered wood fiber keeps working. Accessible surfacing that's compacted at installation and then left to displace stops supporting a caster wheel, usually at the transitions where it matters most.
How do ramps and transfer systems work together?
A ramp lets a child stay in their mobility device for the entire route onto the structure, while a transfer system lets a child leave the device and move up under their own strength. They serve different children, which is why the standard requires ramps for a portion rather than allowing transfer systems alone.
A transfer system has two parts: a transfer platform sized and positioned so a child can move onto it from a wheelchair, and transfer steps letting them continue upward. Proper installation matters as much as the specification here. A transfer platform at the wrong height, or a ramp surface with a lip at the joint, fails in practice while passing on paper.
What does inclusive design add beyond compliance?
Creating inclusive playgrounds goes beyond basic legal compliance, and the gap between an accessible site and an inclusive one is mostly sensory and social. Roughly 1 in 36 children has autism spectrum disorder, and physical access alone does nothing for a child overwhelmed at the entrance.
Four additions make the difference:
Sensory panels and musical instruments engage touch, sound, and sight, supporting sensory development and giving children with sensory disorders a way in.
Quiet zones provide a retreat for children needing calm, which keeps them at the park rather than leaving early.
Communication boards with symbols support non-verbal children in playing alongside peers.
Visual contrast on edges and transitions aids navigation for children with visual impairments.
Ground-level sensory play elements and other accessible play components are usable by every child by definition, which is part of why inclusive equipment at ground level delivers more value per dollar than almost anything else on a site. These elements also build fine motor skills and social skills in the same session.
How does layout affect social play?
Accessibility determines who can reach the playground equipment, and layout determines who plays together across the entire playground. Social play zones and group-oriented equipment encourage interaction among children of different physical abilities, which is the actual goal rather than a side effect.
Face-to-face play layouts build empathy and communication skills, since children positioned to see each other interact differently from children queuing in the same direction. Ground-level spinning elements and accessible swings and seats that accommodate mobility devices put children with and without disabilities in the same activity rather than adjacent ones.
How do you retrofit an existing play area?
Altered play areas trigger the same requirements as new construction, so a partial renovation can bring compliance obligations with it. Work in this order:
Fix the route first, including the connection from parking and the entry points, since equipment nobody can reach gains nothing from upgrading.
Then the surfacing, which is frequently the single change that makes an existing playground usable.
Then ground-level components, which are cheaper to add than elevated ones and often close the compliance gap on their own.
Elevated access last, since ramps and transfer systems on existing playground structures are the most expensive retrofit.
Many playgrounds built before 2012 remain in use, and a phased approach following that order delivers real improvement at each stage rather than waiting for a full replacement.
What about the surrounding facilities?

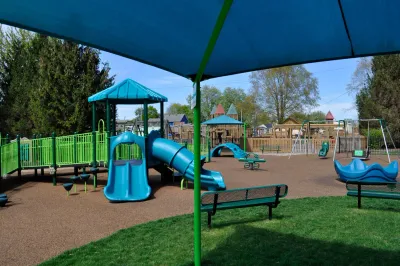

Accessibility doesn't stop at the play equipment. Shade structures are vital for children sensitive to heat or sun exposure, and smooth pathways with adequate clear floor space at seating areas determine whether a family can comfortably stay in the play space.
Restrooms deserve specific attention. Fully compliant family-sized restrooms with adult-sized changing tables are what allow older children and adults with disabilities to visit at all, and their absence is a common reason families don't return to otherwise accessible and inclusive sites.
Planning an Accessible Playground With AAA State of Play
Routes, component counts, and surfacing all constrain each other, which makes them far cheaper to plan together than to retrofit one at a time. AAA State of Play helps schools, parks departments, and communities work through accessibility requirements at the design stage, and we're glad to review your plan whenever it's useful.
